SUPER RS
MODULAR FAÇADE SCAFFOLDING
TOP
Working in accordance with the TOP principle possible!
Integrated, advanced side protection
The requirements of TRBS 2121 are exceeded.
Stability
Stable thanks to offset standard joints.
Inner joint at decking level, outer joint offset by 1 m.
Resilient node connections
Through the use of RINGSCAFF diagonals.
Logistics
Optimised in terms of dimensions and product design.
Combination
Mixing with frames, modular standards and tubes easily possible: 48/3 always fits!
Optimum gap dimensions
Max. 8 cm!
Gap dimensions between bracket and main decking comply with DIN 4420 3 SECT.
6.4.4.5. No height difference!
Height class H2
Thanks to decking ledgers in a new product design.
Standard parts
Most add-on parts from standard systems can be used.
Decking pins
Tube hook-up
U-shaped hook-up
Compatible with standard parts such as modular standards, vertical frames and tubes 48/3.
- No special solutions necessary e.g. for fitting of brackets.
- No inconvenient diagonal coupling necessary.
- No transverse diagonals necessary for scaffolds in the standard design version.
SMART DETAILS
New product design for your new system
- H2: the offset ledger head provides the decisive cm of headroom.

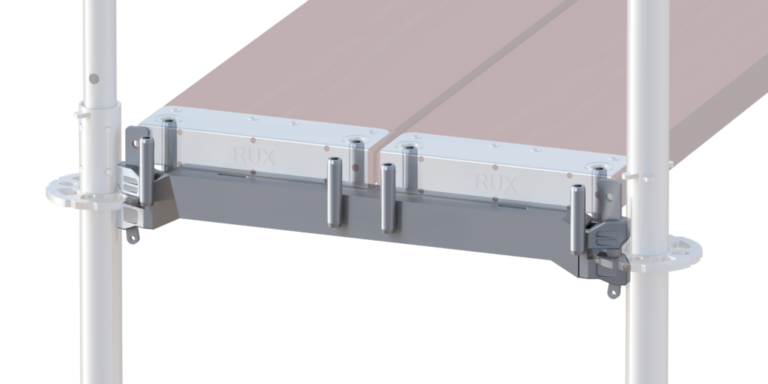

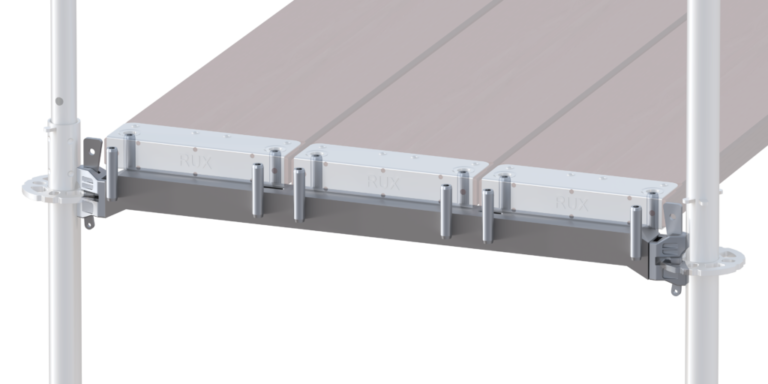

- The new decking ledger is as resilient and stable as ever – even in its innovative form.
- The patented lift-off protection is easy to fit, without any tripping hazard.
- The innovative cover profile minimises the gap between the stairway and the main decking to 2 cm, is a lift-off safety device at the same time and comes with a tube connector.
- Scaffolding bays: 0.5 to 3.07 m
- Installation height: up to approx. 60 m
- Headroom: H2 (>/= 1.90m)
- Material quality: standard S460 / ledger S355 / other components S235 with higher yield strength
- Systems: components for SUPER decking ledger / tube hook-up / U-shaped decking ledger
- Tube connector: diameter 38 mm
- Tube diameter: outside 48.3 mm / inside 39 mm (compressed) / wall thickness 2.7 mm

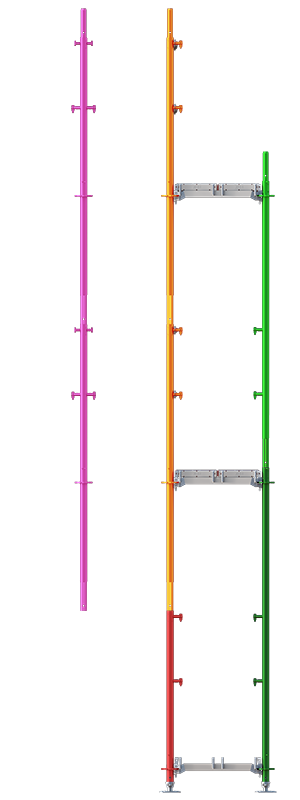

Principle of modular façade scaffolding
Rethink workflows with advanced planning:

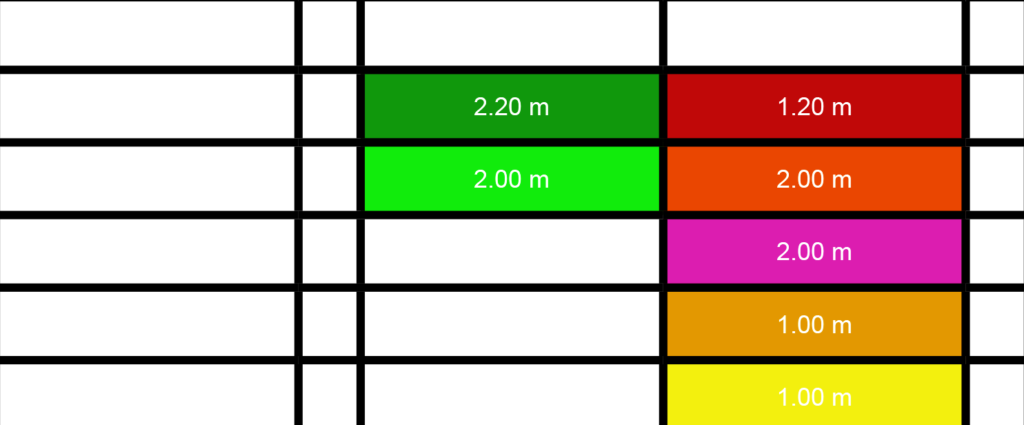

- Outer and inner standards
- Removable or definitive guardrails

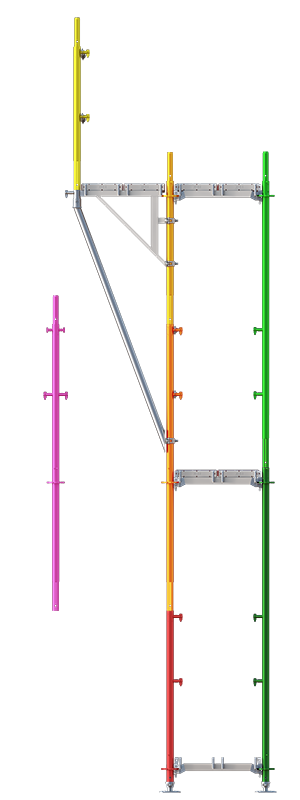

- Planning of brackets in the second last scaffold level (supplementary standards)
COMPARE THIS WITH OTHER SCAFFOLDS!
TEST ASSEMBLY APPOINTMENT
ENQUIRE NOW!
Who needs modular façade scaffolding?
Users:
- investing in systems from scratch,
- modernising their entire material park,
- requiring "integrated, continuous side protection",
- getting by with a maximum scaffold height of up to approx. 60 m.
DYNAMIC is good too,
isn’t it?
We offer great solutions to keep existing, modern systems dynamic.
The best way to find out more is to contact us directly and choose the best solution for your particular trade.
From 30 June 2021, we shall unveil together with you our brand new product that will make your system, whatever it may be, even better and even more modern.
